| ports | threads G 3/8 - G 3/4 flanges PN 16/40 |
| function | NC / NO |
| pressure range | 0-16 / 0-40 bar A B max. 40 bar B A max. 16 bar A C max. 40 bar C A max. 40 bar |
| KV value | 4,3 m³/h |
| media | gaseous liquid highly viscous gelatinous contaminated |
| flow direction | see pressure range |
| switching cycles | 200 1/min |
| switching time | opening 80 ms closing 80 ms |
| media temperature | DC -20 °C — +80 °C AC -20 °C — +80 °C |
| ambient temperature | DC -20 °C — +80 °C AC -20 °C — +80 °C |
| weight | MK 4,3 kg FK 5,9 kg |
| nominal voltage |
Un 24 V DC +5% / -10% Un 230 V 40-60 Hz AC +5% / -10% |
| actuation | DC direct-current magnet AC direct-current magnet with integrated rectifier |
| insulation rating | H 180 °C |
| protection | IP65 |
| energized duty rating | ED 100% |

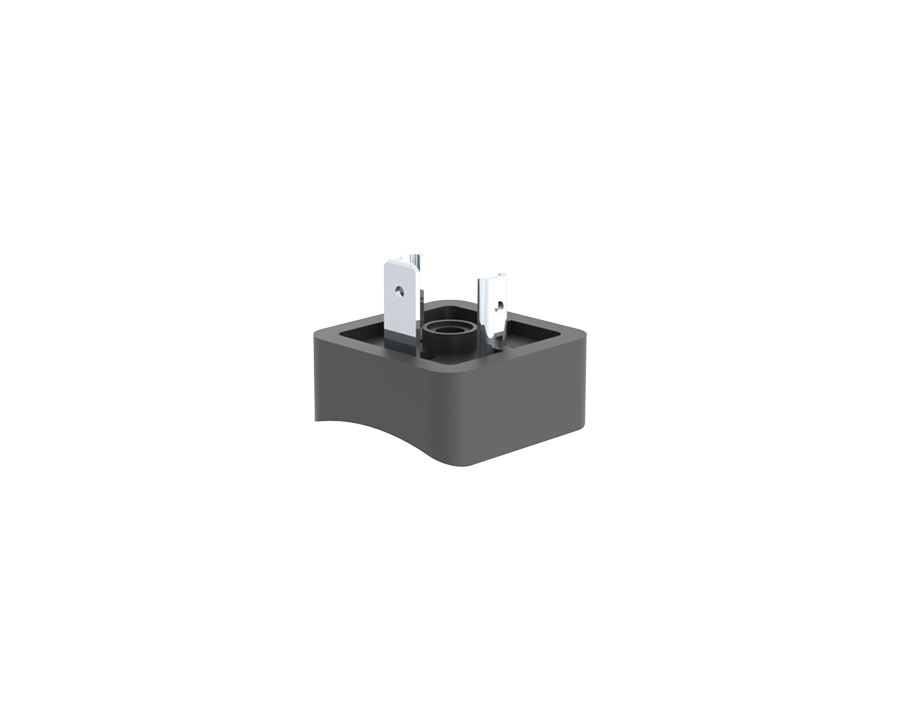

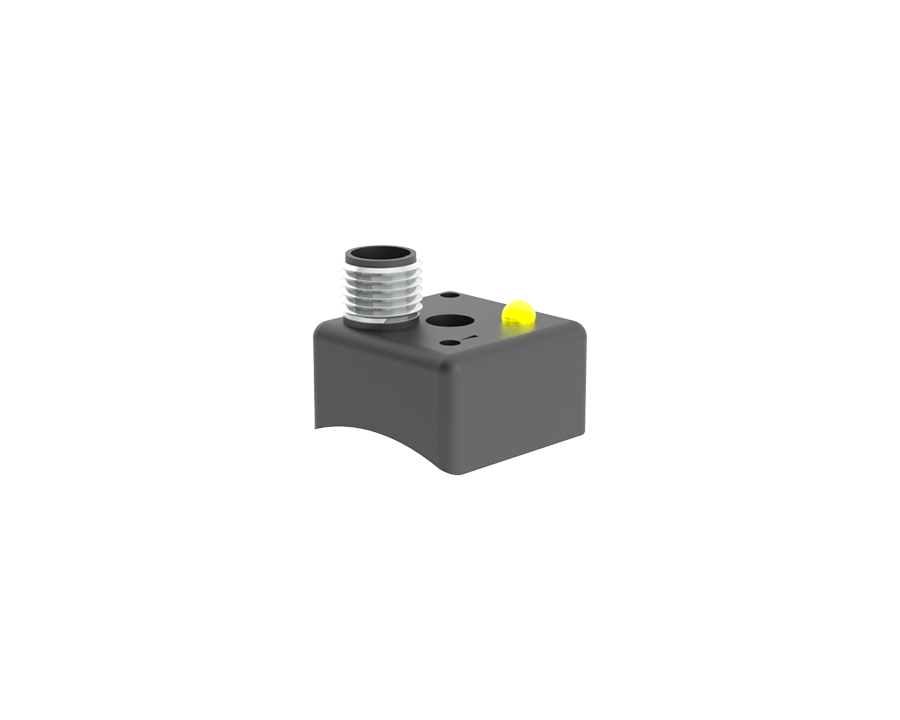

| connection | plug acc. DIN EN 175301-803, form A, 4 positions x 90°, wire diameter 6-8 mm M12x1 connector acc. DESINA / VDMA |
The valves' technical design is based on media and application requirements. This can lead to deviations from the general specifications shown on the data sheet with regards to the design, sealing materials and characteristics.
